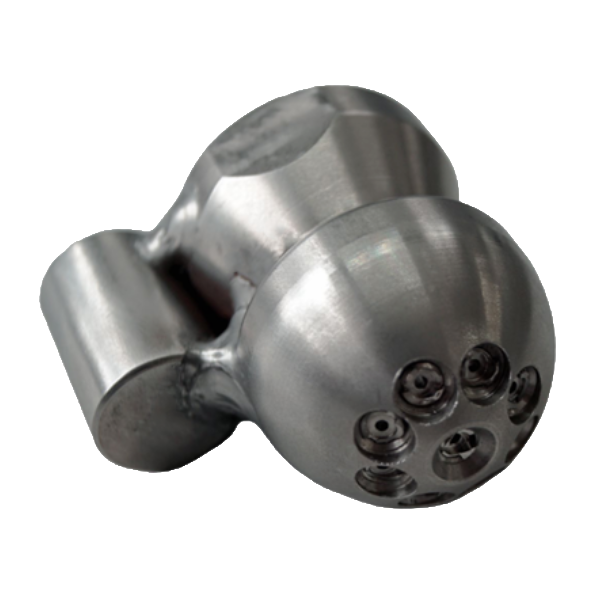

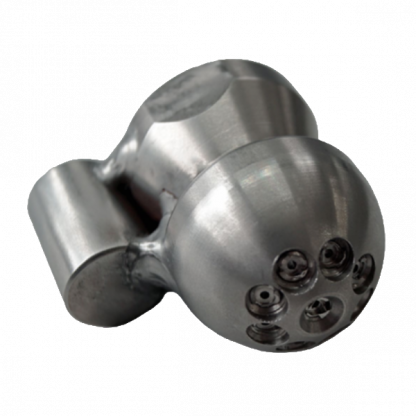

Sliding Nozzles
The Sliding Nozzle with push rod connection allows safe insertion into pipelines and is ideal for flushing from the terminal shaft to the main sewer line. It simplifies the cleaning of house connection pipes and ensures reliable and efficient removal of light deposits.
Article Number: GRP-66-schiebeduesen
Category: Special Nozzles
Short Description
Efficient cleaning from house connections to the main sewer
Variants / Inquiry
Art. No.
Product Name
Features
LxWxH & Weight
0664-B007
1/4" Sliding Nozzle basic body - 7x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0664-C007
1/4" Sliding Nozzle incl. ceramic inserts - 7x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0664-S007
1/4" Sliding Nozzle incl. steel inserts - 7x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0664-B009
1/4" Sliding Nozzle basic body - 9x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0664-C009
1/4" Sliding Nozzle incl. ceramic inserts - 9x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0664-S009
1/4" Sliding Nozzle incl. steel inserts - 9x Forward jet
Connection: 1/4"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-B007
3/8" Sliding Nozzle basic body - 7x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-C007
3/8" Sliding Nozzle incl. ceramic inserts - 7x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-S007
3/8" Sliding Nozzle incl. steel inserts - 7x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-B009
3/8" Sliding Nozzle basic body - 9x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-C009
3/8" Sliding Nozzle incl. ceramic inserts - 9x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0668-S009
3/8" Sliding Nozzle incl. steel inserts - 9x Forward jet
Connection: 3/8"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0667-B007
1/2" Sliding Nozzle basic body - 7x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0667-C007
1/2" Sliding Nozzle incl. ceramic inserts - 7x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0667-S007
1/2" Sliding Nozzle incl. steel inserts - 7x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 6x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0665-B009
1/2" Sliding Nozzle basic body - 9x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0665-C009
1/2" Sliding Nozzle incl. ceramic inserts - 9x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
0665-S009
1/2" Sliding Nozzle incl. steel inserts - 9x Forward jet
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Front Nozzles: 8x M4 / 1x M4
Front Jet Angle: 20° / 0°
Dimensions: 4,2 × 3 × 3 cm
Weight: 0,15 kg
Support Documents
Product datasheet and further documents for this product.
