Camera Cable Nozzles

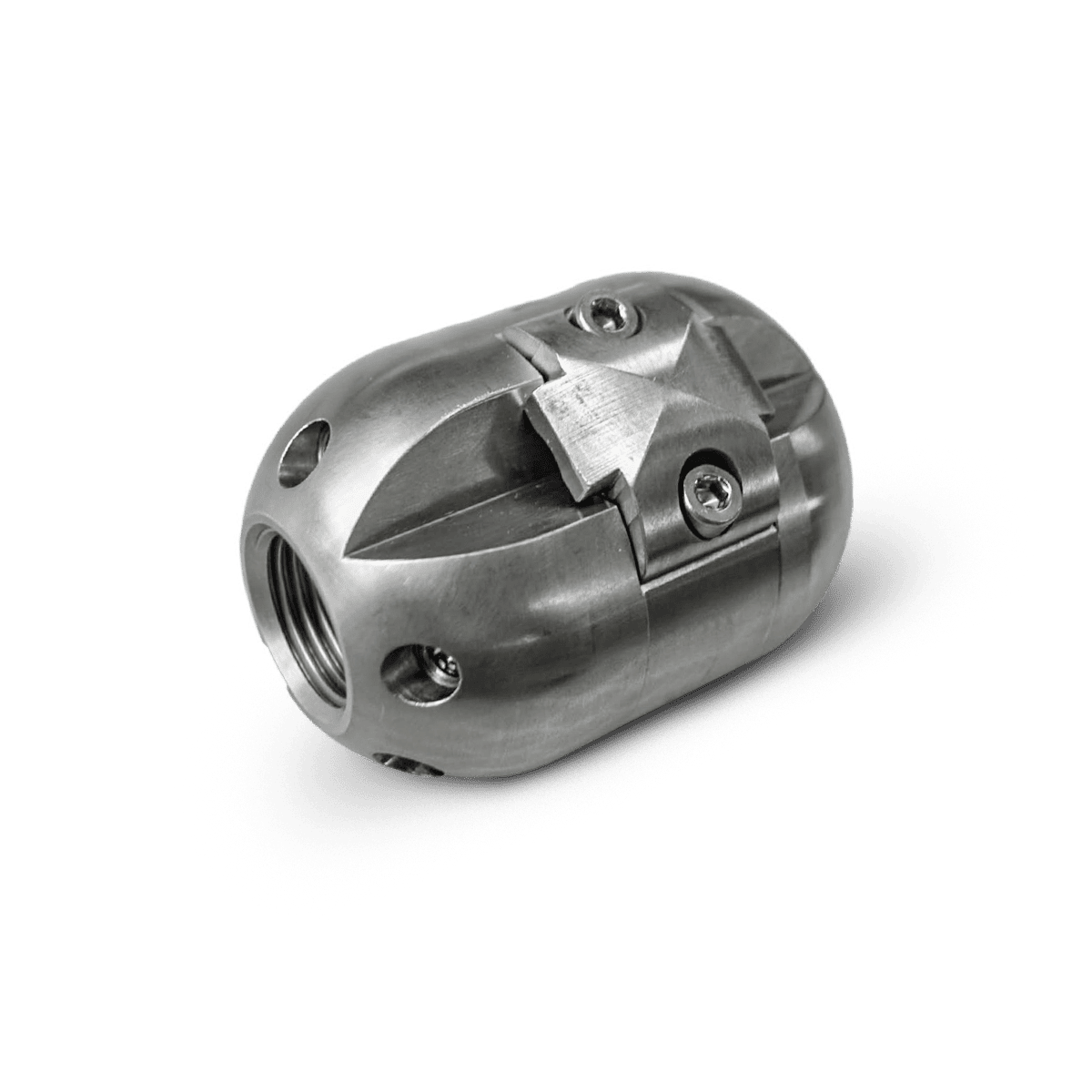

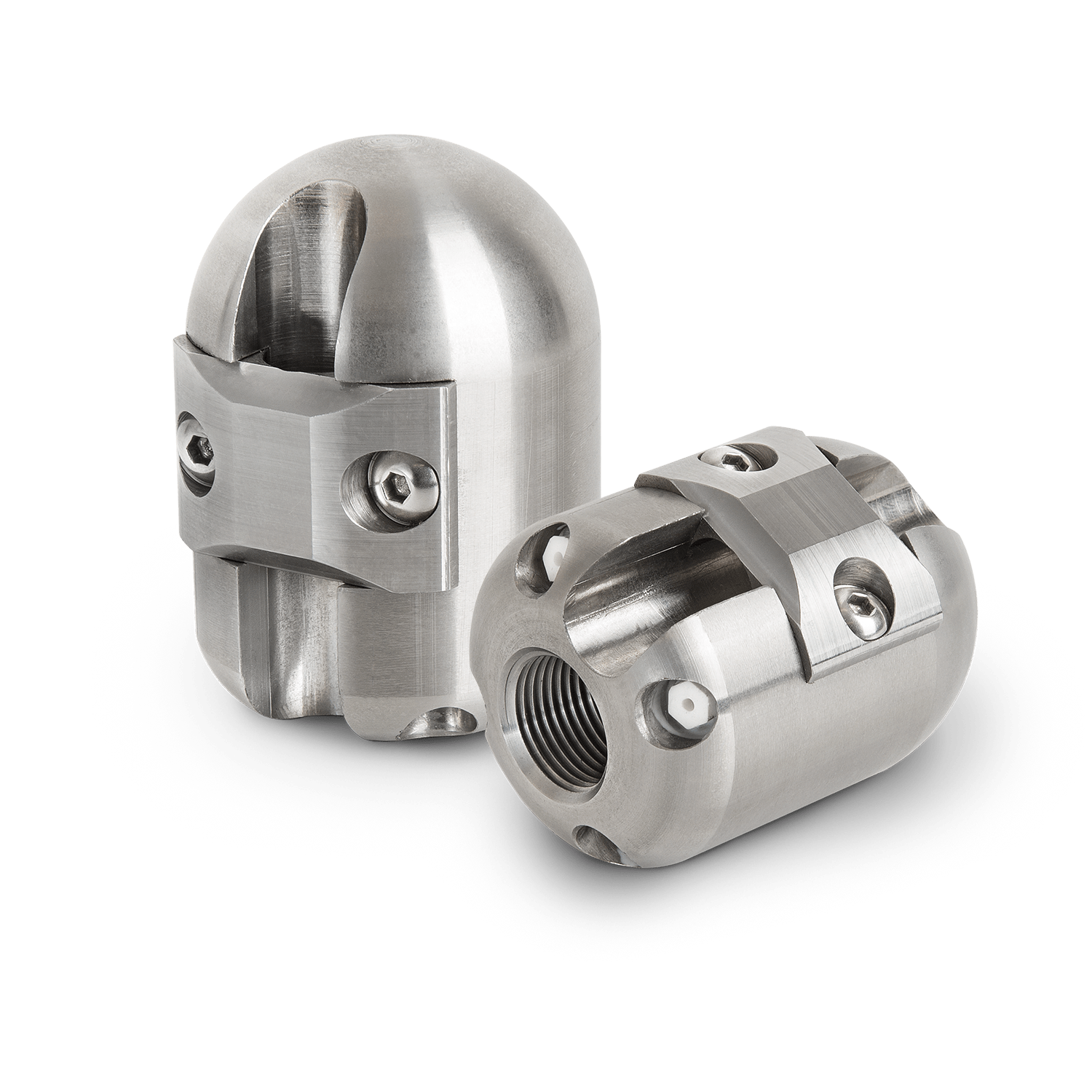

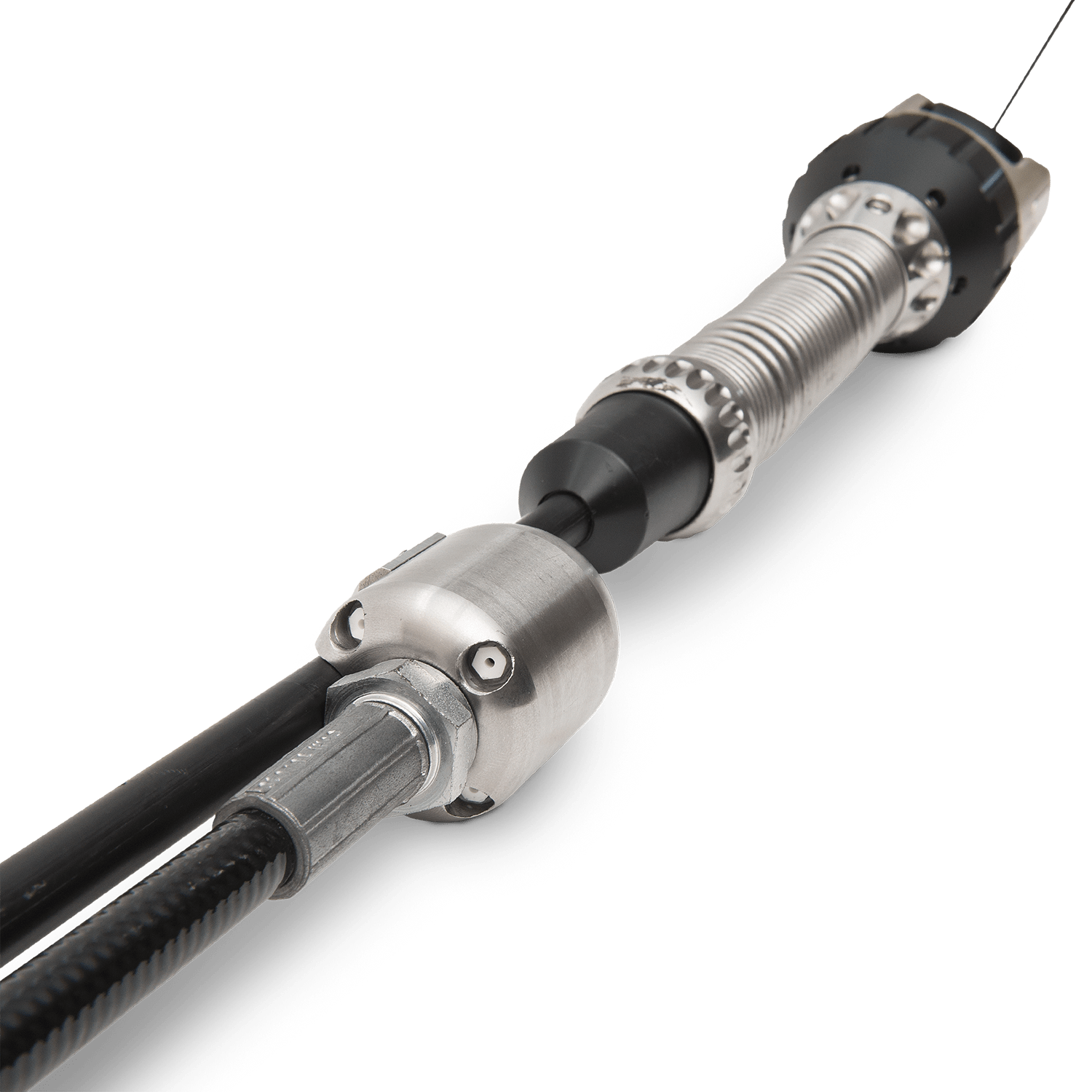

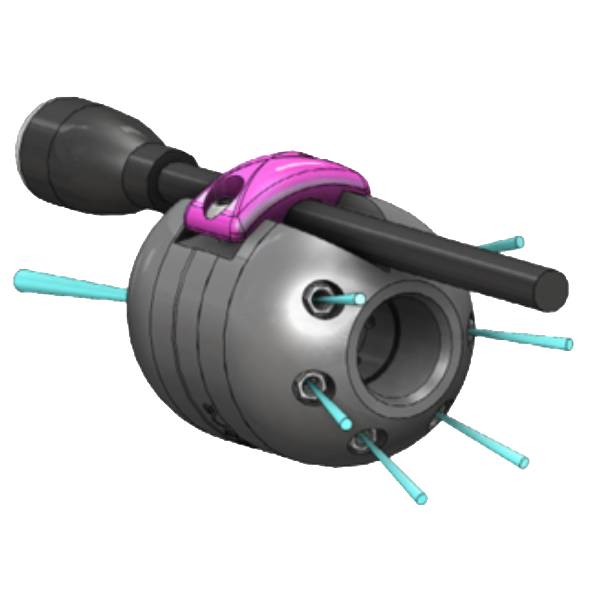

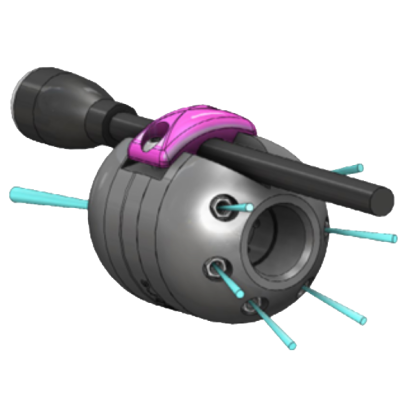

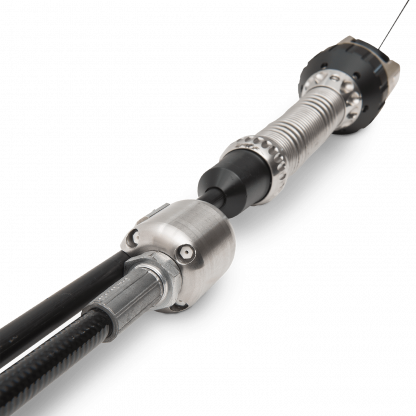

The Camera Cable Nozzle with clamp bracket (9/11 mm) attaches directly to push cameras or push rods and supports safe insertion over longer pipe distances. At the same time, it enables efficient pipe cleaning, significantly simplifying inspection and maintenance work.
Article Number: GRP-72-klemmduesen
Category: Special Nozzles
Short Description
Extended reach for push cameras – propulsion and cleaning in one
Variants / Inquiry
Art. No.
Product Name
Features
LxWxH & Weight
7200-B000
1/2" Camera Cable Nozzle basic body
Connection: 1/2"
Application from: > 100 mm
Liter capacity: > 60 l/min
Thrust Nozzles: 6x M6
Thrust Jet Angle: 20°
Front Nozzles: 1x M6
Front Jet Angle: 0°
Dimensions: 6,8 × 5 × 5 cm
Weight: 0,8 kg
7200-C000
1/2" Camera Cable Nozzle incl. ceramic inserts
Connection: 1/2"
Application from: > 100 mm
Liter capacity: > 60 l/min
Thrust Nozzles: 6x M6
Thrust Jet Angle: 20°
Front Nozzles: 1x M6
Front Jet Angle: 0°
Dimensions: 6,8 × 5 × 5 cm
Weight: 0,8 kg
7200-S000
1/2" Camera Cable Nozzle incl. steel inserts
Connection: 1/2"
Application from: > 100 mm
Liter capacity: > 60 l/min
Thrust Nozzles: 6x M6
Thrust Jet Angle: 20°
Front Nozzles: 1x M6
Front Jet Angle: 0°
Dimensions: 6,8 × 5 × 5 cm
Weight: 0,8 kg
Support Documents
Product datasheet and further documents for this product.
