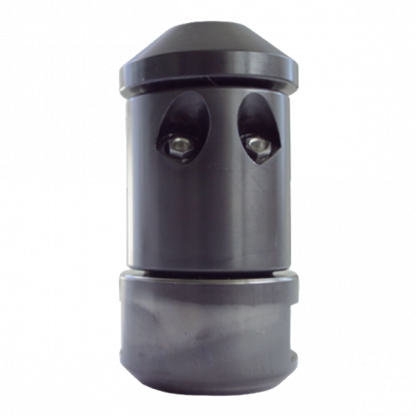

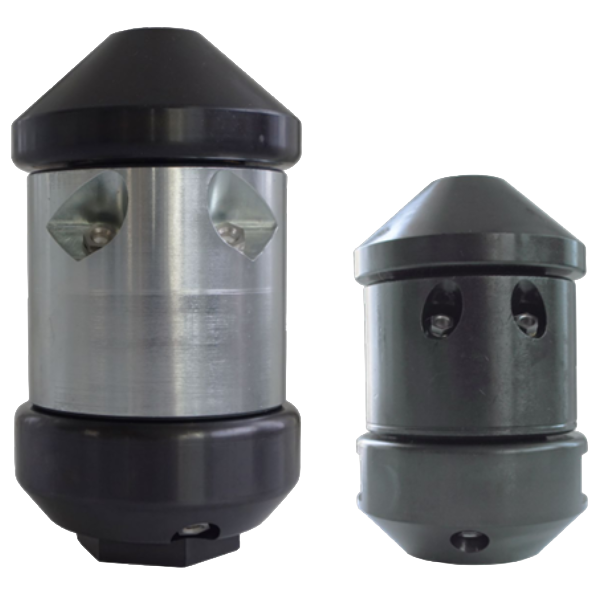

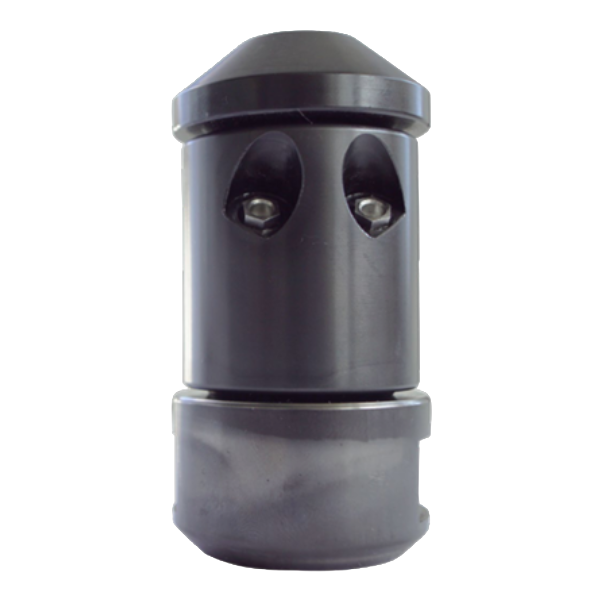

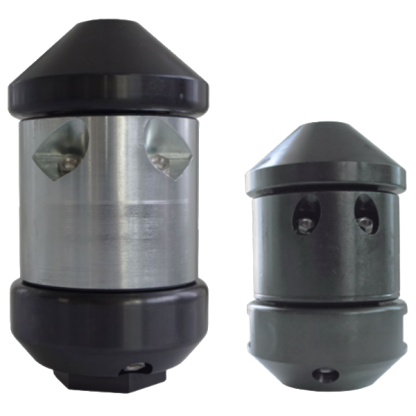

RTV Rotating Nozzles

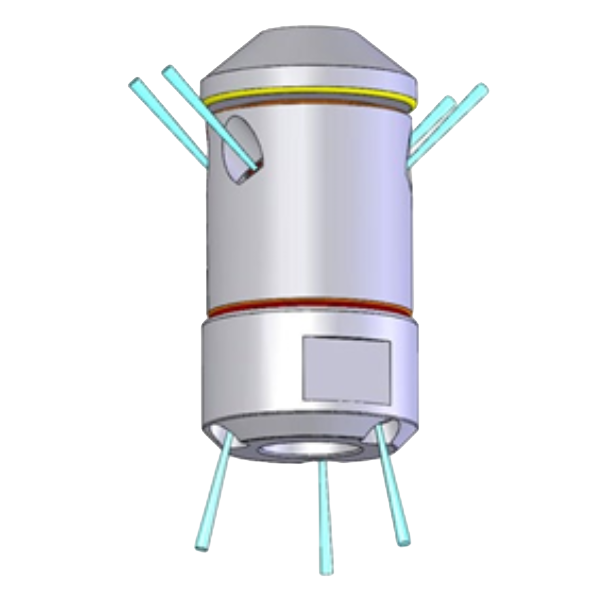

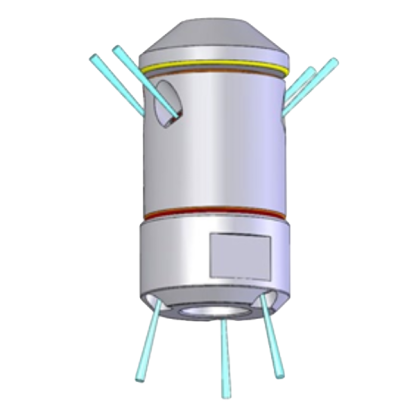

The rotating nozzle with RTV rotor has been specifically developed for the professional cleaning of blocked and heavily contaminated pipelines. Three thrust jets provide strong forward propulsion, while four rotating front jets effectively loosen and break up deposits and blockages. This enables the efficient removal of even stubborn obstructions, restoring full flow capacity to the pipeline. Ideal for demanding cleaning applications requiring reliable blockage removal and thorough pipe cleaning.
Article Number: GRP-295-rtvrotierduesen
Category: Rotating Nozzles
Short Description
Powerful rotary cleaning for blocked pipelines
Variants / Inquiry
Art. No.
Product Name
Features
LxWxH & Weight
2940-D020
1/8" RTV Rotating Nozzle drilled 20l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2940-D040
1/8" RTV Rotating Nozzle drilled 40l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2940-D0XX
1/8" RTV Rotating Nozzle drilled - 22x50mm - individual setup upon request
Connection: 1/8"
Application from: > 30 mm
Liter capacity: upon request
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2941-D020
1/4" RTV Rotating Nozzle drilled 20l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2941-D040
1/4" RTV Rotating Nozzle drilled 40l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2941-D0XX
1/4" RTV Rotating Nozzle drilled - 22x50mm - individual setup upon request
Connection: 1/8"
Application from: > 30 mm
Liter capacity: upon request
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2942-B000
1/4" RTV Rotating Nozzle basic body - 28x56mm
Connection: 1/4"
Application from: > 40 mm
Liter capacity: > 10 l/min
Thrust Nozzles: 3x M4
Thrust Jet Angle: 20°
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2942-C000
1/4" RTV Rotating Nozzle incl. ceramic inserts - 28x56mm
Connection: 1/4"
Application from: > 40 mm
Liter capacity: > 10 l/min
Thrust Nozzles: 3x M4
Thrust Jet Angle: 20°
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2942-S000
1/4" RTV Rotating Nozzle incl. steel inserts - 28x56mm
Connection: 1/4"
Application from: > 40 mm
Liter capacity: > 10 l/min
Thrust Nozzles: 3x M4
Thrust Jet Angle: 20°
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2943-B000
3/8" RTV Rotating Nozzle basic body - 28x56mm
Connection: 3/8"
Application from: > 40 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2943-C000
3/8" RTV Rotating Nozzle incl. ceramic inserts - 28x56mm
Connection: 3/8"
Application from: > 40 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2943-S000
3/8" RTV Rotating Nozzle incl. steel inserts - 28x56mm
Connection: 3/8"
Application from: > 40 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2944-B000
1/2" RTV Rotating Nozzle basic body - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 40 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 15°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2944-C000
1/2" RTV Rotating Nozzle incl. ceramic inserts - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 40 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 15°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2944-S000
1/2" RTV Rotating Nozzle incl. steel inserts - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 40 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 15°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2945-B000
3/4" RTV Rotating Nozzle basic body - 40x78mm - without thrust jets
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2945-C000
3/4" RTV Rotating Nozzle incl. ceramic inserts - 40x78mm - without thrust jets
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2945-S000
3/4" RTV Rotating Nozzle incl. steel inserts - 40x78mm - without thrust jets
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2946-B000
3/4" RTV Rotating Nozzle basic body - 50x80mm - with thrust jets
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2946-C000
3/4" RTV Rotating Nozzle incl. ceramic inserts - 50x80mm - with thrust jets
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2946-S000
3/4" RTV Rotating Nozzle incl. steel inserts - 50x80mm - with thrust jets
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2947-B000
3/4" RTV Rotating Nozzle basic body - 60x95mm - with thrust jets
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2947-C000
3/4" RTV Rotating Nozzle incl. ceramic inserts - 60x95mm - with thrust jets
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2947-S000
3/4" RTV Rotating Nozzle incl. steel inserts - 60x95mm - with thrust jets
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2948-B000
1" RTV Rotating Nozzle basic body - 60x95mm - with thrust jets
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2948-C000
1" RTV Rotating Nozzle incl. ceramic inserts - 60x95mm - with thrust jets
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2948-S000
1" RTV Rotating Nozzle incl. steel inserts - 60x95mm - with thrust jets
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 4x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2949-B000
1" RTV Rotating Nozzle basic body - 98x175mm - with thrust jets
Connection: 1"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7,4 kg
2949-C000
1" RTV Rotating Nozzle incl. ceramic inserts - 98x175mm - with thrust jets
Connection: 1"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7,4 kg
2950-B000
1 1/4" RTV Rotating Nozzle basic body - 98x175mm - with thrust jets
Connection: 1 1/4"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7,4 kg
2950-C000
1 1/4" RTV Rotating Nozzle incl. ceramic inserts - 98x175mm - with thrust jets
Connection: 1 1/4"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7,4 kg
Support Documents
Product datasheet and further documents for this product.
