RTH Rotating Nozzles

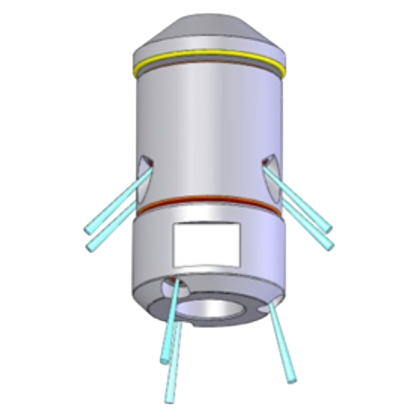

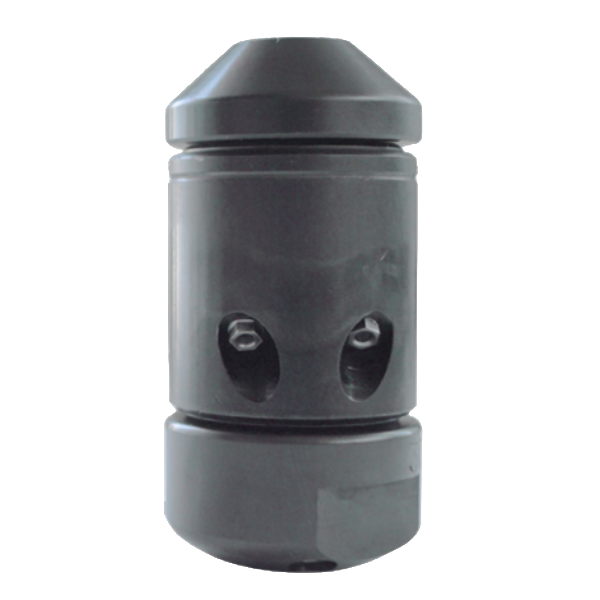

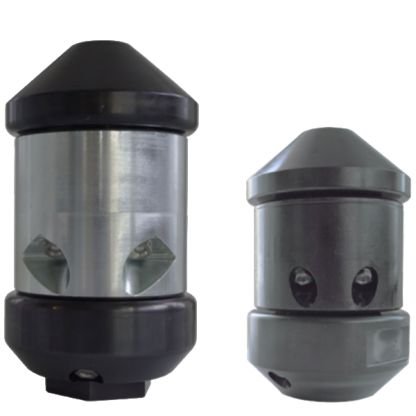

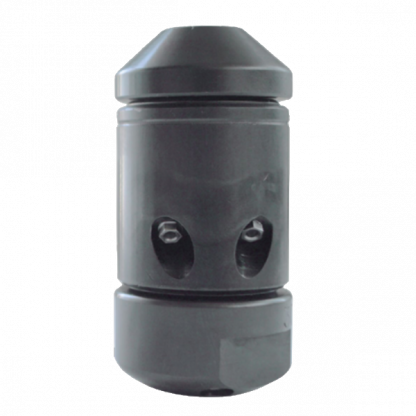

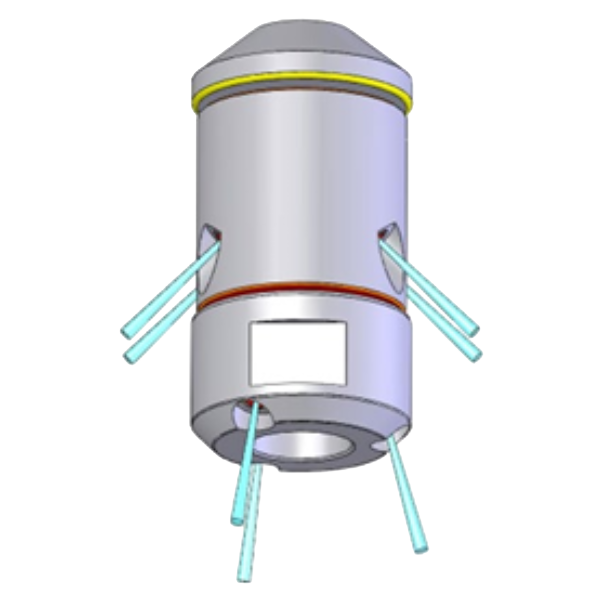

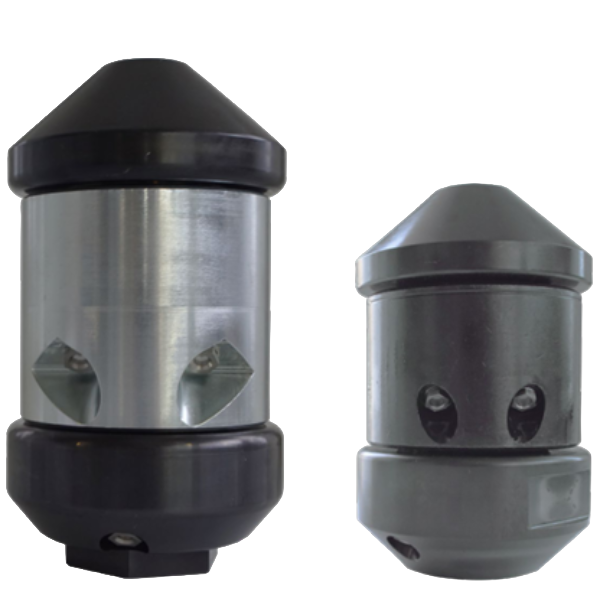

The rotating nozzle with RTH rotor combines powerful rotational and thrust jets for highly efficient pipe cleaning. Four rear-facing cutting jets provide simultaneous deposit removal and strong forward propulsion of the nozzle head. The nozzle is ideally suited for removing soft root intrusion, loose deposits, and for loosening and flushing out lime scale and concrete sludge deposits.
Article Number: GRP-294-rthrotierduesen
Category: Rotating Nozzles
Short Description
Maximum cleaning performance through powerful rotation and thrust
Variants / Inquiry
Art. No.
Product Name
Features
LxWxH & Weight
2901-D020
1/8" RTH Rotating Nozzle drilled 20l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2901-D040
1/8" RTH Rotating Nozzle drilled 40l - 22x50mm
Connection: 1/8"
Application from: > 30 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2901-D0XX
1/8" RTH Rotating Nozzle drilled - 22x50mm - individual setup upon request
Connection: 1/8"
Application from: > 30 mm
Liter capacity: upon request
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2902-D020
1/4" RTH Rotating Nozzle drilled 20l - 22x50mm
Connection: 1/4"
Application from: > 30 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2902-D040
1/4" RTH Rotating Nozzle drilled 40l - 22x50mm
Connection: 1/4"
Application from: > 30 mm
Liter capacity: > 40 l/min
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2902-D0XX
1/4" RTH Rotating Nozzle drilled - 22x50mm - individual setup upon request
Connection: 1/4"
Application from: > 30 mm
Liter capacity: upon request
Spinning Nozzles: 4x
Spinning Jet Angle: 45°
Dimensions: 5 × 2,2 × 2,2 cm
Weight: 0,15 kg
2903-B000
1/4" RTH Rotating Nozzle basic body - 28x56mm
Connection: 1/4"
Application from: > 50 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2903-C000
1/4" RTH Rotating Nozzle incl. ceramic inserts - 28x56mm
Connection: 1/4"
Application from: > 50 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2903-S000
1/4" RTH Rotating Nozzle incl. steel inserts - 28x56mm
Connection: 1/4"
Application from: > 50 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2904-B000
3/8" RTH Rotating Nozzle basic body - 28x56mm
Connection: 3/8"
Application from: > 50 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2904-C000
3/8" RTH Rotating Nozzle incl. ceramic inserts - 28x56mm
Connection: 3/8"
Application from: > 50 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2904-S000
3/8" RTH Rotating Nozzle incl. steel inserts - 28x56mm
Connection: 3/8"
Application from: > 50 mm
Liter capacity: > 10 l/min
Spinning Nozzles: 4x M4
Spinning Jet Angle: 45°
Dimensions: 5,6 × 2,8 × 2,8 cm
Weight: 0,22 kg
2905-B000
1/2" RTH Rotating Nozzle basic body - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2905-C000
1/2" RTH Rotating Nozzle incl. ceramic inserts - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2905-S000
1/2" RTH Rotating Nozzle incl. steel inserts - 40x78mm
Connection: 1/2"
Application from: > 70 mm
Liter capacity: > 30 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2906-B000
3/4" RTH Rotating Nozzle basic body - 40x78mm
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2906-C000
3/4" RTH Rotating Nozzle incl. ceramic inserts - 40x78mm
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2906-S000
3/4" RTH Rotating Nozzle incl. steel inserts - 40x78mm
Connection: 3/4"
Application from: > 70 mm
Liter capacity: > 20 l/min
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 7,8 × 4 × 4 cm
Weight: 0,6 kg
2907-B000
3/4" RTH Rotating Nozzle basic body - 50x80mm
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2907-C000
3/4" RTH Rotating Nozzle incl. ceramic inserts - 50x80mm
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2907-S000
3/4" RTH Rotating Nozzle incl. steel inserts - 50x80mm
Connection: 3/4"
Application from: > 90 mm
Liter capacity: > 70 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 8 × 5 × 5 cm
Weight: 1,1 kg
2908-B000
3/4" RTH Rotating Nozzle basic body - 60x95mm
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2908-C000
3/4" RTH Rotating Nozzle incl. ceramic inserts - 60x95mm
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2908-S000
3/4" RTH Rotating Nozzle incl. steel inserts - 60x95mm
Connection: 3/4"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2909-B000
1" RTH Rotating Nozzle basic body - 60x95mm
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2909-C000
1" RTH Rotating Nozzle incl. ceramic inserts - 60x95mm
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2909-S000
1" RTH Rotating Nozzle incl. steel inserts - 60x95mm
Connection: 1"
Application from: > 100 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 3x M6
Thrust Jet Angle: 25°
Spinning Nozzles: 4x M6
Spinning Jet Angle: 45°
Dimensions: 9,5 × 6 × 6 cm
Weight: 1,4 kg
2910-B000
1" RTH Rotating Nozzle basic body - 98x175mm
Connection: 1"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7 kg
2910-C000
1" RTH Rotating Nozzle incl. ceramic inserts - 98x175mm
Connection: 1"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7 kg
2911-B000
1 1/4" RTH Rotating Nozzle basic body - 98x175mm
Connection: 1 1/4"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7 kg
2911-C000
1 1/4" RTH Rotating Nozzle incl. ceramic inserts - 98x175mm
Connection: 1 1/4"
Application from: > 200 mm
Liter capacity: > 120 l/min
Thrust Nozzles: 3x M10x1
Thrust Jet Angle: 35°
Spinning Nozzles: 4x M10x1
Spinning Jet Angle: 45°
Dimensions: 17,5 × 9,8 × 9,8 cm
Weight: 7 kg
Support Documents
Product datasheet and further documents for this product.
