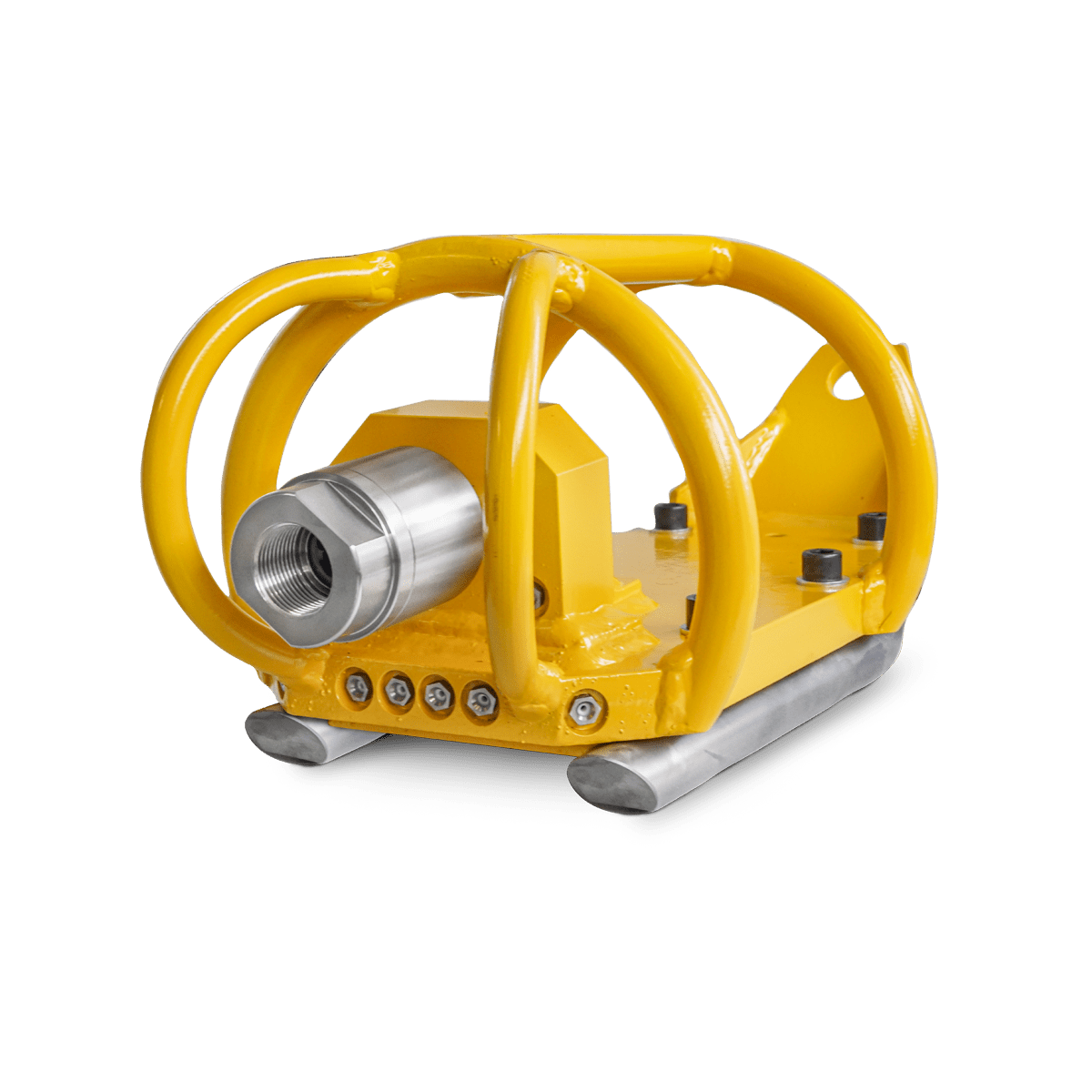

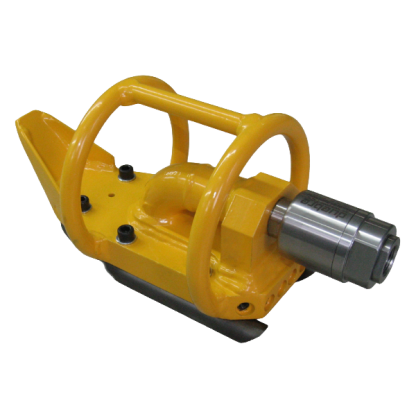

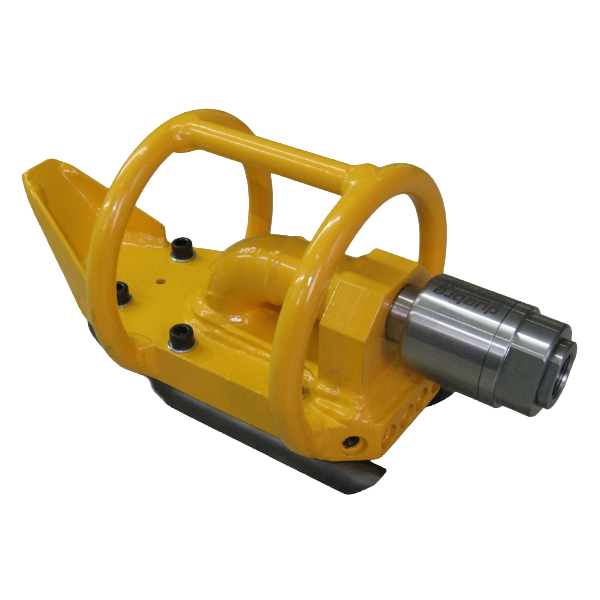

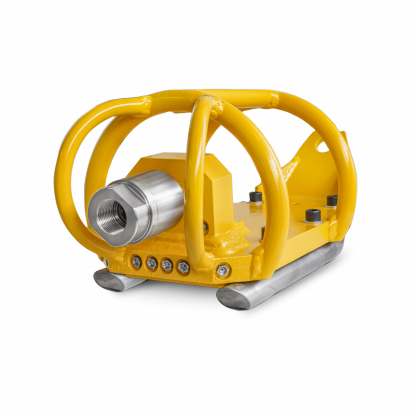

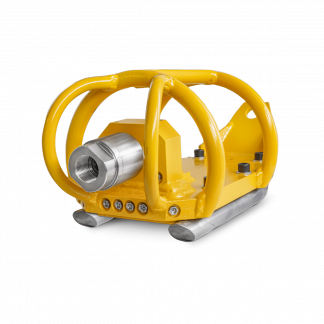

Bulldozer

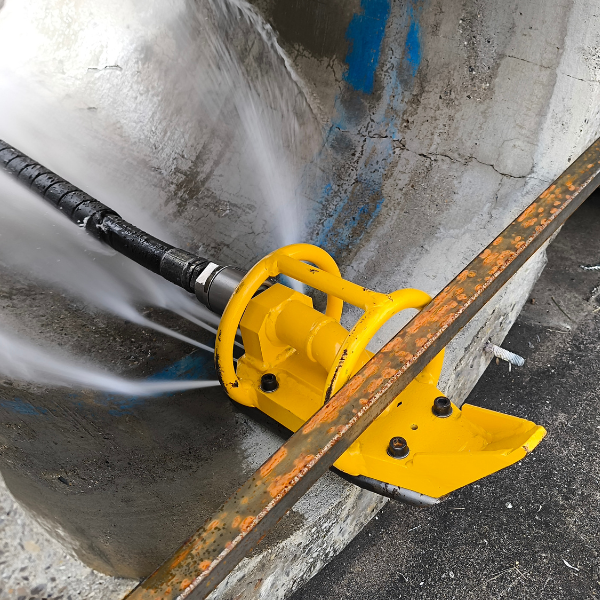

Bulldozer nozzles have been setting standards in sewer cleaning for over 40 years. Their design concentrates the full energy output on the channel invert, ensuring highly efficient cleaning exactly where it is needed. They enable deep cleaning even in high-flow conditions without floating up and offer smooth operation thanks to optimized sliding properties. Durable, replaceable steel skids ensure long service life and reliable performance in demanding applications.
Article Number: GRP-20-bulldozer
Category: Performance Nozzles
Short Description
Bulldozer – Powerhouse for invert cleaning
Variants / Inquiry
Art. No.
Product Name
Features
LxWxH & Weight
0223-C000
3/4" Bulldozer incl. 1" swivel joint reduced to 3/4" and incl. ceramic inserts - 330x185x196mm
Connection: 3/4"
Application from: > 300 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 6x M10x1
Dimensions: 33 × 18,5 × 19,6 cm
Weight: 13,1 kg
0224-C000
3/4" Bulldozer incl. 1" swivel joint reduced to 3/4" and incl. ceramic inserts - 480x234x207mm
Connection: 3/4"
Application from: > 300 mm
Liter capacity: > 300 l/min
Thrust Nozzles: 8x M10x1
Dimensions: 48 × 23,4 × 20,7 cm
Weight: 23,9 kg
0203-C000
1" Bulldozer incl. swivel joint and incl. ceramic inserts - 330x185x196mm
Connection: 1"
Application from: > 300 mm
Liter capacity: > 100 l/min
Thrust Nozzles: 6x M10x1
Dimensions: 33 × 18,5 × 19,6 cm
Weight: 13,1 kg
0204-C000
1" Bulldozer incl. swivel joint and incl. ceramic inserts - 480x234x207mm
Connection: 1"
Application from: > 300 mm
Liter capacity: > 300 l/min
Thrust Nozzles: 8x M10x1
Dimensions: 48 × 23,4 × 20,7 cm
Weight: 23,9 kg
0225-C000
1" Bulldozer incl. swivel joint and incl. ceramic inserts - 601x290x253mm
Connection: 1"
Application from: > 300 mm
Liter capacity: > 300 l/min
Thrust Nozzles: 10x M10x1
Dimensions: 60,1 × 29 × 25,3 cm
Weight: 33,3 kg
0205-C000
1 1/4" Bulldozer incl. 1 1/4" swivel joint and incl. ceramic inserts
Connection: 1 1/4"
Application from: > 300 mm
Liter capacity: > 300 l/min
Thrust Nozzles: 10x M10x1
Dimensions: 60,1 × 29 × 25,3 cm
Weight: 34,4 kg
0206-C000
1 1/2" Bulldozer incl. 1 1/2" swivel joint and incl. ceramic inserts
Connection: 1 1/2"
Application from: > 300 mm
Liter capacity: > 300 l/min
Thrust Nozzles: 10x M10x1
Dimensions: 60,1 × 29 × 25,3 cm
Weight: 38,3 kg
0203-0120
Spare Skids Set 271x55x25mm für 0203-C000/0223-C000/0207-C000/0227-C000
Dimensions: 27,1 × 5,5 × 2,5 cm
Weight: 1,8 kg
0204-0230
Spare Skids Set 399x68x30mm für 0204-C000/0224-C000/0208-C000/0228-C000
Dimensions: 39,9 × 6,8 × 3 cm
Weight: 4 kg
0205-0130
Spare Skids Set 435x65x35mm für 0206-C000/0205-C000/0225-C000/0210-C000/0209-C000/0229-C000
Dimensions: 43,5 × 6,5 × 3,5 cm
Weight: 6,8 kg
0203-0400
Additional Weight 1,1kg für 0203-C000/0223-C000/0207-C000/0227-C000
Dimensions: 4 × 4 × 18,5 cm
Weight: 1,1 kg
0204-1400
Additional Weight 2,2kg für 0204-C000/0224-C000/0208-C000/0228-C000
Dimensions: 8 × 8 × 6 cm
Weight: 2,2 kg
0205-1100
Additional Weight 3,7kg für 0206-C000/0205-C000/0225-C000/0210-C000/0209-C000/0229-C000
Dimensions: 6 × 6 × 26,8 cm
Weight: 3,7 kg
Support Documents
Product datasheet and further documents for this product.
